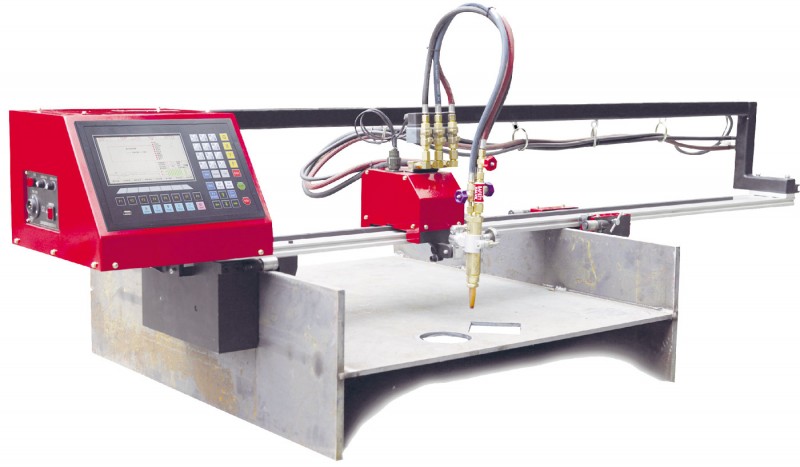

CNC H-Beam Sub Plate Cutting Machine
Home Products Oxy/Gas CNC Cutting Machines CNC H-Beam Sub Plate Cutting Machine
Click on image for a larger view!
RM 38800
CNC GAS/OXY CUTTTING:
Adjustable H-Beam cutting width from 200mm - 100mm, length from 1M - 6M. Cutting thickness up to 50mm.

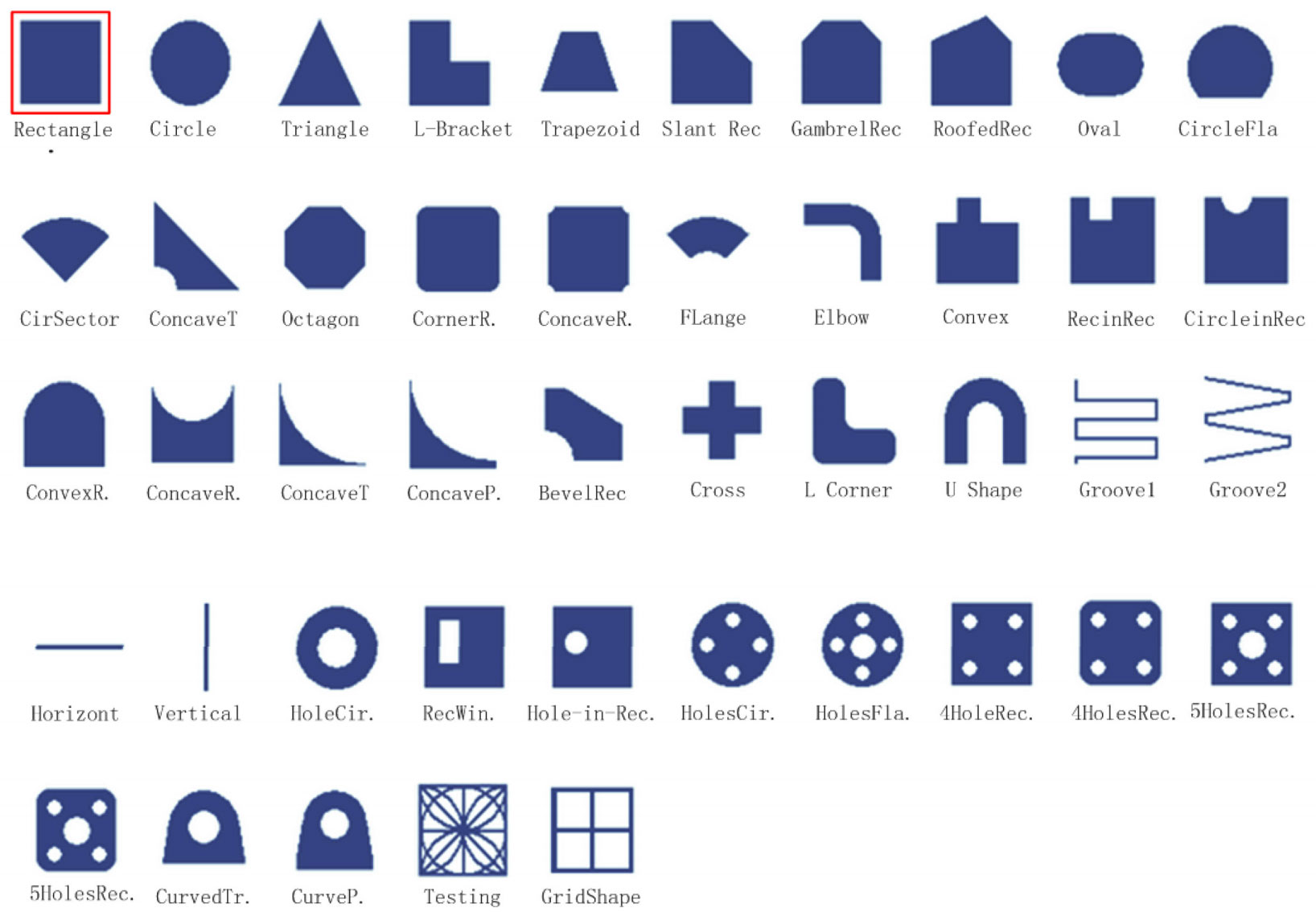

COMES WITH 40+ PRE-BUILT SHAPE CUTTING LIBRARIES
No need external CAD files for any shape cutting. Simply select the shape you want to cut, key in the parameters and start cutting, on-site!
ONLY SINGLE-PHASE 240VAC & OXY CUTTING GAS IS NEEDED!
Simply provide gas and electricity, which is easily available in any on-site environment!
2-AXIS CLOSED-LOOP SERVO MOTOR CONTROL
Accurate cutting with 2-AXIS Closed-Loop Servo Step Motor Control provides guarantee cutting quality and precision.
ONE DAY INSTALLATION AND TRAINING INCLUDED:
Upon successful purchase of our MYCUT CNC, once the machine has been unloaded to your desired work space with all the necessary power and gas requirements fulfilled, this is what we will do:
- We will install the machine in the morning
- If the installation process is smooth, usually after lunch we can start the training.
- By the end of the day you will be able to operate the CNC cutting machine. After a week of continued practice you will be a CNC cutting expert in no time.
AFTER SALES AND SUPPORT:
Sometimes there are problems with the CNC software settings, or maybe you may have forget the steps, or there are some problem with electrical or mechanical. No worries, call our after sales support number and we will attend to you as soon as possible. The good news is up to 95% of the problems can be solved via a phone call.
Our after sales support channels:
- Via Internet Remote Computer Access
- Via Phone Calls and SMS
- Via WhatsApp
- Via On-Site
MADE IN MALAYSIA:
MACH ROBOTICS H-BEAM CNC is proudly designed, manufactured and assembled in Selangor, Malaysia by Mach Robotics, a company that focuses on manufacturing of custom CNC cutting machines as well as CNC repair services. You will be purchasing a locally made CNC cutting machine with local after sales support.
FREQUENTLY ASKED QUESTIONS:
1. WHY USE OXY/GAS CUTTING? If you want to cut thick mild steel with less than 2 degree bevel, oxy/gas cutting is the best choice. There are also plasma cutters than can cut very thick metal, but those plasma cutters will be very expensive, up to 5 digit amounts. Plasma cutting nozzles at such capacities are very expensive, it can go up to RM150 per nozzle, which is not cost effective compared to oxy/gas cutting.
2. WHAT IS THE MOST QUALITY CUTTING NOZZLE? We highly recommend Koike 106D7 LPG gas cutting nozzles, it is the best cutting nozzle available in the market, it can cut faster than other nozzles and can cut less than 2 degree bevel with very little slag. For economical nozzle that cuts slower without compromising quality, we recommend Koike 106HC LPG gas cutting nozzle..
3. WHY USE LPG GAS? LPG Gas is also cooking gas that is used at your home. It is far more affordable than Acetylene, and does not produce black dusty carbons during cutting. The carbon residue can cause nozzle blockage, meaning you have to frequently stop the production to clean the nozzle all the time.
4. I DO NOT KNOW HOW TO USE OXY/GAS CUTTING, HOW? No worries, we will train you on how to cut with CNC OXY/GAS CUTTING. We will also indicate correct pressures on knobs and gauges so there is a reference for you.
5. WHAT IS THE DIFFERENCE BETWEEN OXY/GAS AND PLASMA CUTTING? Oxy/gas cutting is limited to mild steel and carbon steel, but can cut very thick metals economically with very little bevel. Plasma cutting can cut mild steel, stainless steel and aluminum, but only economical and affordable for less than 6mm cutting. As quality and high definition plasma cutters are mostly manufactured in USA, our currency exchange rate is causing the price of the plasma cutters and their consumables to increase. Therefore we always recommend our customers to go for 0.5mm to 5mm thickness in plasma cutting, and any cutting above that will be oxy/gas cutting. Should you want to cut thicker than 6mm for plasma cutting, please inform us, and we will try our best to work out the cost for a good plasma cutter.
6. IS THE CNC HARD TO USE? Most of our customers use foreign labor to operate our cutting machines, while they use local labor for cutting file preparation. We also provide training to foreign labors from Bangladesh, Indonesia, Myammar, Burma, etc. Just ensure that they know some form of English/Malay, and knows how to use computer/smartphone! Our training takes less than 4 hours only! It's a very straight-forward and simplified procedure. We also provide operation manuals just in case your operator does not remember how to use.
PRICING:
- Starting from RM38,800.00
- Other sizes please inquire us at +6016 677 8469 (Mr Teh)
Have a question? Contact Mr Teh at +6 016-677 8469!
Note: We reserve the right to change the details of the product without prior notice. Contact us for an accurate pricing.
